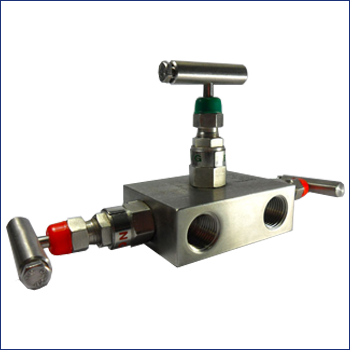

PART NO : 3VM-RM-F

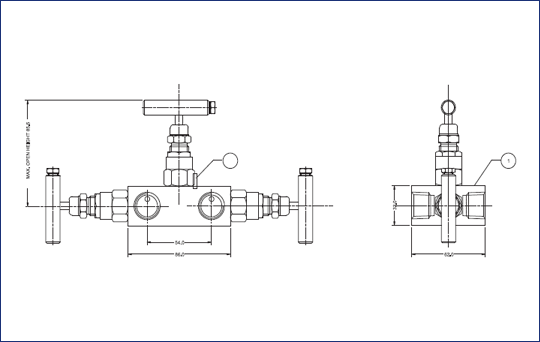

DESCRIPTION : Designed for application to facilitate remote Mounting of differential pressure Instruments. Dimensious show above are for the standard 54 mm or 21/8 inch instrument connection. Centre distance found in majority of Instruments. The manifold is also available for Instruments with other centre distance for Instrument Connections. But dimension shown will vary. Useful for Installation in remote fields eleminating conventional method of piping

CONNECTION :
Process : 1/2"NPT(F)
Instrument : 1/2"NPT(F)
Drain/vent : 1/4"NPT{F)

TEST PRESSURE :
@ 25�c' Room temperature

Hydrostatic : Body : 620kg/cm2g
Seat : 413kg/cm2
Pneumatic : Seat : 40kg/cm2

GLAND PACKING :
PTFE : Standard
GRAPHOIL : Temperature above 180�c

MATERIAL :
A105, A182 Gr F304 SS, A182 Gr F316 SS Hastalloy , Monel.

FINISH :
CS :Zinc plated and Dichromated
SS :Natural

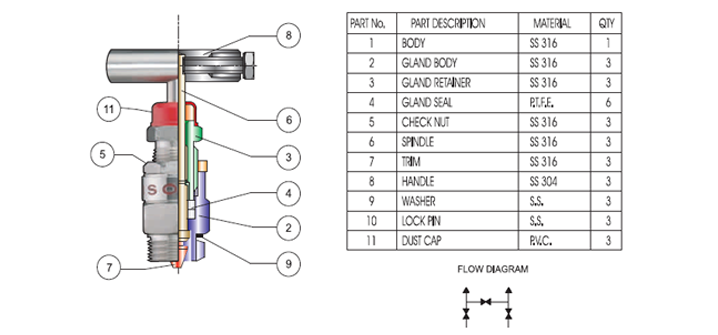

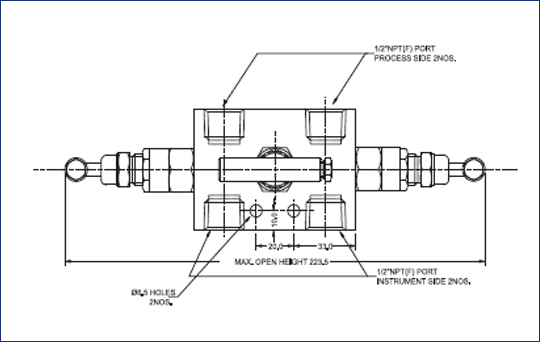

Cross Sectional View :
